MODULAR DESIGN
for ULTIMATE Success
The smart, modular design of the R2000WF Rotator makes it quick, simple and inexpensive to repair. Individual parts can be purchased to rebuild damaged sprinklers. The sprinkler is made up of a cap, diffuser, motor, plate, body and nozzle. Contact us to learn more about our free maintenance program!
High and low

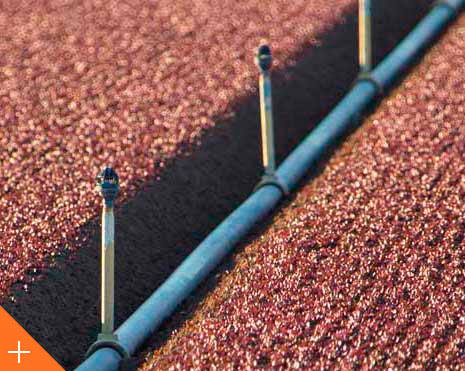

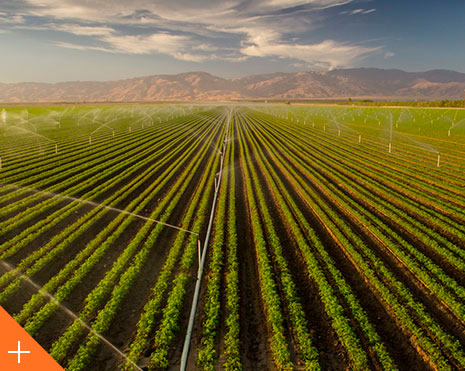

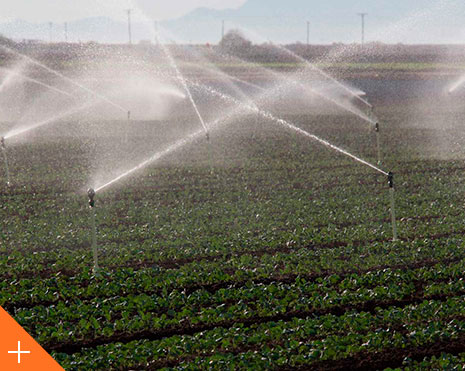

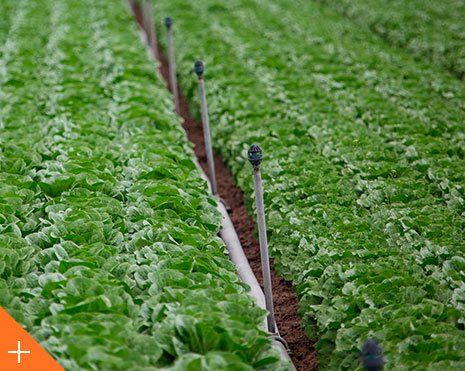

In addition to row crops Use the R2000WF and R2000LP for overhead irrigation, cooling, and environmental control for nursery crops, tree, vine, small fruit, and berry crops. It’s also perfect for revegetation, mining, and other specialty uses.
R2000WF
40-65 PSI
(2.75-4.5 bar)

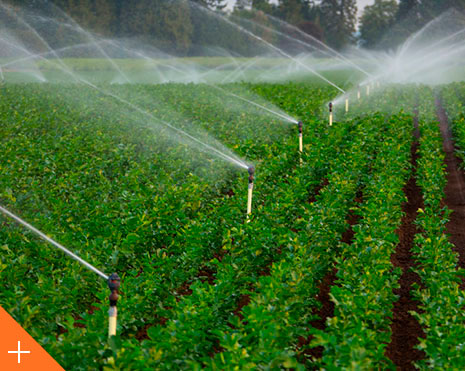

The R2000WF forms a tight wind-penetrating stream that is systematically broken up by a diffuser, filling in the water pattern. Its sweeping action gently distributes water droplets to the ground preventing soil compaction.
R2000LP
25-50 PSI
(1.75-3.5 bar)
The R2000LP is a low-pressure version of the R2000WF.
Combine the R2000WF with a Mini Regulator Drain Check or Mini Drain Check and you ensure no drain down on system start up and shut down. Pressure regulation means each sprinkler is putting out the same amount of water further contributing to high crop uniformity.
controlled rotation speed
The water stream emitted from the nozzle is directed into an offset channel on the rotor plate, which creates a reactionary drive force. A viscous silicone fluid in the rotor motor controls the rotation speed.
Crop specific applications
A wide range of performance options are available. Use the Resources section for product selection with the right plate, nozzle, motor and diffuser combinations. These parameters are also important when making repairs or changing nozzle size.
Superior to IMpract Sprinklers
This precise and simple design solves many of the problems that the impact sprinkler faces. More uniform water distribution patterns can be achieved, reliability is enhanced, application rates are reduced, costs and maintenance are lowered, and riser vibration is eliminated.
